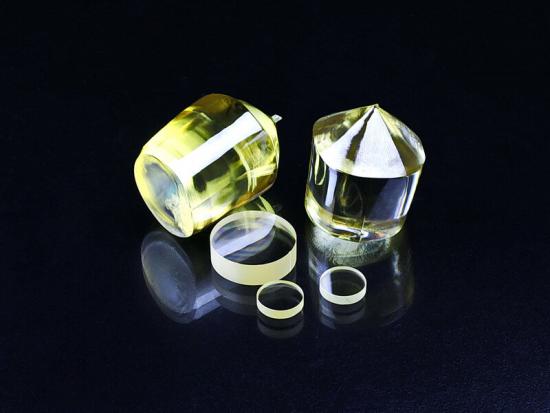

a-BBO Crystal alpha -Barium Borate

α-BBO (α-BaB2O4) is a negative uniaxial crystal which has large birefringence over a broad transparent range of 190nm to 3500nm. α-BBO is an excellent crystal especially in UV and high power applications. The physical, chemical, thermal, and optical properties of alpha-BBO crystal are similar to those of Beta-BBO. However, there is no second order nonlinear effect in alpha-BBO crystal due to the centrosymmetry in its crystal structure and thus it has no use for second order nonlinear optical processes. Instead, alpha-BBO is widely used for fabrication of polarizers, polarizing beam displacers, phase retarders, birefringent plates, and time delay compensators especially those for UV and high power lasers.

Hot Tags : high damage threshold Alpha-BBO birefringent crystal alpha-Barium Borate birefringent crystal Custom α-BBO Birefringent Crystals from China a-BBO crystals for high power isolators a-bbo birefringent crystals a-BBO for high damage threshold beam displacer a-BBO birefringent material used in UV range a-BBO Crystal alpha -Barium Borate high power birefringent material
Read More
Details

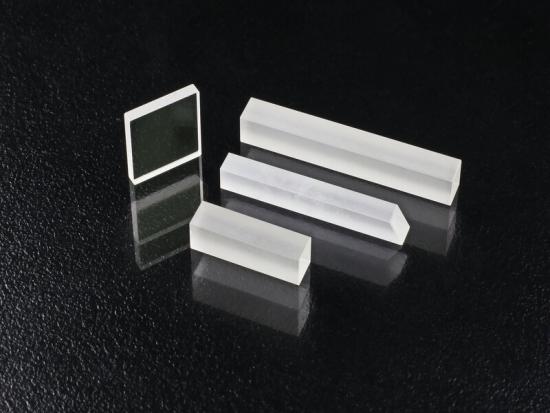

YVO4 crystal Yttrium Orthovanadate

The Yttrium Orthovanadate (YVO4) is a positive uniaxial crystal grown with Czochralski method. It has good temperature stability and physical and mechanical properties. It is ideal for optical polarizing components because of its wide transparency range and large birefringence. It is an excellent synthetic substitute for Calcite (CaCO3) and Rutile (TiO2) crystals in many applications including fiber optic isolators and circulators, interleavers, beam displacers and other polarizing optics.

Hot Tags : Undoped Yttrium Orthovanadate Crystal Birefringent optical crystals supplier and manfacture Undoped YVO4 for isolators and wedge Undoped YVO4 waveplates High birefringence YVO4 crystal in IR wavelength China Yvo4 Birefringent Crystal Material YVO4 birefringent crystals Undoped YVO4 for beam displacer YVO4 crystal Yttrium Orthovanadate
Read More
