IR Cut Bandpass Antireflection Coating Filter

A band pass filter is a device that passes frequencies within a certain range and rejects (attenuates) frequencies outside that range, and it’s used to selectively transmit a portion of the spectrum while rejecting all other wavelengths.

  • Product Origin:

    China
  • Shipping Port:

    Fuzhou, China
  • Lead Time:

    4 weeks
Share To : f t y b l ins
  • Product Detail

4.1、What are bandpass filters?

A bandpass filter is a device that passes frequencies within a certain range and rejects (attenuates) frequencies outside that range, and it’s used to selectively transmit a portion of the spectrum while rejecting all other wavelengths.

4.2、In what fields can Bandpass Filters be widely used?

Optical band pass filters are typically used in for the life science, industrial, or R&D industries, and also are ideal for a variety of applications, such as fluorescence microscopy, spectroscopy, clinical chemistry, wireless transmitters, receivers or imaging.


4.3、What HG OPTRONICS can supply for you?

HG OPTRONICS can supply all kinds of bandpass filters, which are made by BK7 Glass, Fused silica, B270, Color Glass, etc. The custom specifications are available upon request.

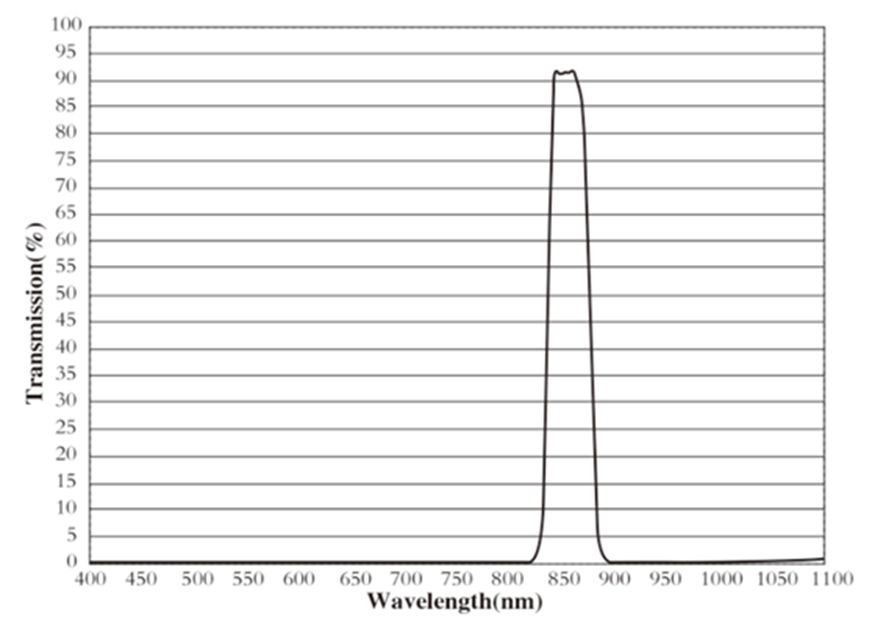

4.4. Common Transmittance Curve
