Passive Q-switch

/Co2+:MgAl2O4 Cobalt-doped magnesium aluminate spinel

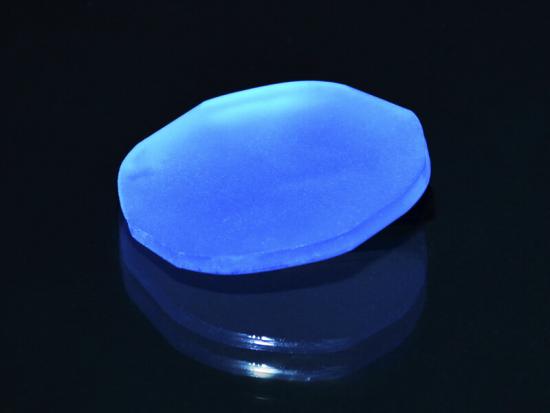

Co2+:MgAl2O4 Cobalt-doped magnesium aluminate spinel

Co2+:MgAl2O4 Cospinel is a relatively new material for passive Q-switching in lasers emitting from 1.2 to 1.6 μm, in particular, for eye-safe 1.54 μm Er:glass laser, but also works at 1.44 μm and 1.34 μm wavelengths. Spinel is a hard, stable crystal that polishes well. Cobalt substitutes readily for magnesium in the Spinel host without the need for additional charge compensation ions. High absorption cross section (3.5×10-19 cm2) permits Q-switching of Er:glass laser without intracavity focusing both with flash-lamp and diode-laser pumping. Negligible excited-state absorption results in high contrast of Q-switch, i.e. the ratio of initial (small signal) to saturated absorption is higher than 10.

  • Product Origin:

    China
  • Shipping Port:

    Fuzhou, China
  • Lead Time:

    3-4weeks
Share To : f t y b l ins
  • Product Detail

Descriptions:



Co2+:MgAl2O4 Cobalt-doped magnesium aluminate spinel is a relatively new material for passive Q-switching specially for eye-safe 1.54 μm Er:glass laser, but also works at 1.44 μm and 1.34 μm wavelengths.



Main applications:

1) Passive Q-switch for Radar and Ranging Er:Glass lasers @1,35µm

2) Passive Q-switch for Medical lasers @1,500 µm


Advantages:

1) Rare excited absorption

2) High constant of Q-switch

3) High absorption section

4) Long excited lifetime

5) Evenly distributed cobalt

6) Wide absorption band

Basic properties of Cospinel

Chemical formula

Co2+:MgAl2O4

Crystal structure

Cubic

Lattice parameters

8.07Å

Density

3.62 g/cm3

Melting Point

2105°C

Refractive Index

n=1.6948 @1.54 μm

Thermal Conductivity/(W·cm-1·K-1@25°C)

0.033W

Thermal Expansion /10-6 /°C@25°C

1.046

Specific Heat/ (J·g-1·K-1)

5.9

Hardness (Mohs)

8.2

Extinction Ratio

25dB

Density

1.6-1.75


HGO offers Cospinel specifications:

Orientation:

<100> or <111>

Initial absorption coefficient

0~7cm-1@1064nm

Initial transmission

50%~99%

Wavefront Distortion:

λ/8per inch @ 632.8 nm

Surface Quality:

20/10 Scratch/Dig MIL-O-1380A

Parallelism:

< 10

Perpendicularity:

< 10

Clear Aperture:

> 90%

Surface Flatness:

< λ/10 @ 632.8 nm

Chamfer:

< 0.1 mm @ 45deg.

Size

Upon customer request

Coating

AR/HR/PR coating upon customer’s request

Damage Threshold

750MW/CM2 at 1064nm, TEM00, 10ns, 10Hz

Quality Warranty Period

One year under proper use


Why Choose HGO ?

HG OPTRONICS.,INC. supplies very high quality of Co2+:MgAl2O4 Cobalt-doped magnesium aluminate spinel.The use of high quality starting materials for crystal growth, boule interferometry, and precise measurement of initial transmission and absorption using transmission spectroscopy and ZYGO measurements, assures that each crystal will comply with customer’s specification and perform well in laser system.

Tolerance of initial transmission can be well controlled within as high precision as 0.5% which could be very essential to some delicate laser systems. Besides, based on HGO’s advanced bonding technology, high quality of optical bonding kits between Er:Yb:glass and cospinel q-switch can also be supplied.

HGO could also provide high quality polishing and apply high laser induced damage threshold coating for the switch.and also for other related cavity lens and mirrors for the eye safe lasers systems.

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products

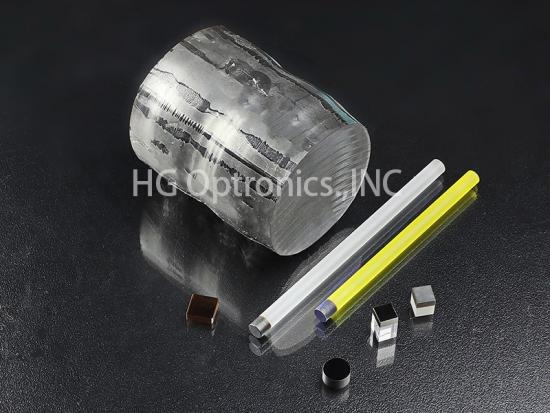

Cr4+:YAG passive q-switch
Cr4+:YAG crystals Chromium Doped Yttrium AIuminum Garnet

Cr4+:YAG (Y3Al5O12) crystal is ideal for passive Q-switch operation of Nd:YAG and other Nd3+ or Yb3+ doped laser crystals in the wavelength range of 900 nm to 1200 nm. Passive Q-switches or saturable absorbers provide high power laser pulses without electro-optic Q-switches, thereby reducing the package size and eliminating a high voltage power supply. A remarkable feature of Cr4+:YAG is the high damage threshold of >10 J/cm2@1064 nm, 10 ns. Its absorption band extends from 900 nm to 1200 nm and peaks around 1060 nm with a very large absorption cross-section.

Read More
Commercial Grade Wedge Prisms
N-BK7 and Fused Silica Wedge Prisms

Wedge prism is an optical element with plane-inclined surfaces, usually the faces are inclined toward one another at a very small angles.  It diverts light toward its thicker portion.  Wedge prisms can be used as isolating components. Wedges may also be used to produce a small deviation which doesnt allow return to source.

Read More

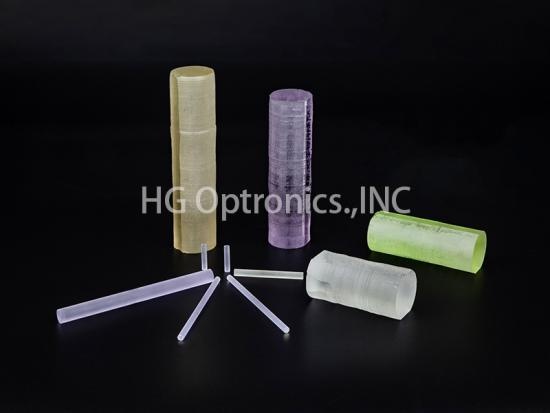

HoYLF laser crystal
