Broadband AR Coated Achromatic Lenses(Doublet Lenses)

Achromatic Lenses are used to minimize or eliminate chromatic aberration. The achromatic design also helps minimize spherical aberrations. Achromatic Lenses are ideal for a range of applications, including fluorescence microscopy, image relay, inspection, or spectroscopy. Achromatic Lenses, which are often designed by either cementing two elements together or mounting the two elements in a housing, create smaller spot sizes than comparable singlet lenses.

  • Product Origin:

    China
  • Shipping Port:

    Fuzhou, China
  • Lead Time:

    5-6weeks
Share To : f t y b l ins
  • Product Detail

6.1.What do you mean by achromatic combination?

An achromatic lens can be defined as a lens which is made by acombination of two different types of lenses carrying different focal powers in a manner such that the images formed by the light of both the combined lenses are free from chromatic aberration or achromatism.


6.2.What are achromatic lenses used for?

Achromatic Lenses are used to minimize or eliminate chromatic aberration. The achromatic design also helps minimize spherical aberrations. Achromatic Lenses are ideal for a range of applications, including fluorescence microscopy, image relay, inspection, or spectroscopy.


6.3. Doublet Lens Capabilities

Material:

Crown Glass&Flint Glass CDGM, Schott, Ohara etc

Dimension Tolerance:

±0.1mm(Standard), ±0.01mm(High Precision)

Center Thickness Tolerance:

±0.1mm(Standard), ±0.02mm(High Precision)

Paraxial Focal Length:

±2%

Surface quality:

60/40(Standard), 20/10(High Precision)

Clear Aperture:

>90%

Surface Figure:

λ/2(Standard), λ/4(High Precision) @633nm

Centration:

1 arc minutes

Bevel:

<0.2mm×45°

Coating:

Upon requirement

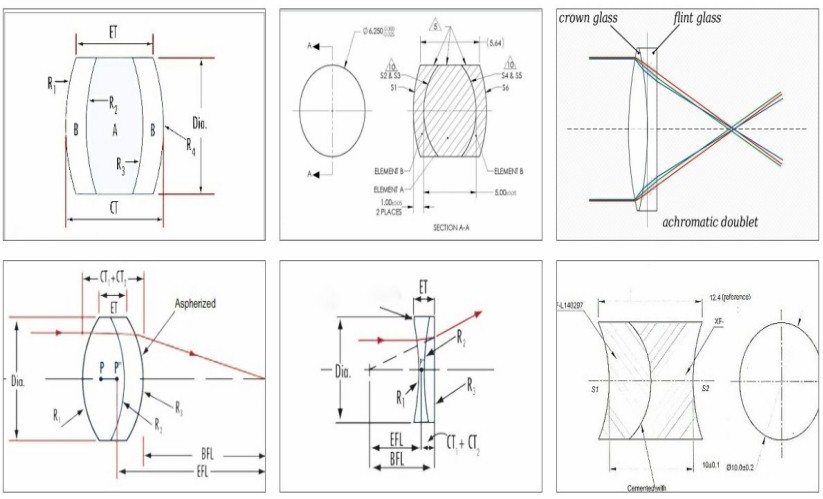

6.4. Doublet Lens case show

Part No

F(mm)

Φ

(mm)

Nd A

Nd B

R1

(mm)

R2=R3

(mm)

R4

(mm)

Tc1

(mm)

Tc2

(mm)

Fb

(mm)

HGQ22105

20

6

BK7

SF5

12.36

-8.51

-24.38

2.6

1.0

18.29

HGQ22501

25

6

BK7

SF5

15.7

-10.66

-29.99

2.3

1.0

23.45

HGQ22502

30

6

BK7

SF5

18.88

-12.94

-34.68

1.9

1.0

28.69

HGQ22510

25

8

BK7

SF5

15.6

-10.81

-30.48

2.9

1.0

23.12

HGQ22514

30

8

BK7

SF5

18.88

-12.88

-36.22

2.7

1.0

28.27

HGQ22516

25

12.7

BK7

SF5

15.6

-11.40

-31.05

4.3

1.3

22.25

HGQ22518

30

12.7

BK7

SF5

18.53

-13.49

-37.84

4.0

1.3

27.36

HGQ22520

40

12.7

BK7

SF5

25.23

-17.54

-48.75

3.4

1.3

37.77

HGQ22521

50

12.7

BK7

SF5

31.26

-21.93

-62.37

3.1

1.3

47.99

HGQ22530

75

12.7

BK7

SF5

46.77

-32.96

-94.62

2.6

1.3

73.23

HGQ22543

40

18

BK7

SF5

24.27

-18.35

-53.09

5.4

1.5

36.51

HGQ22556

50

18

BK7

SF5

31.69

-22.00

-60.57

4.8

1.5

46.98

HGQ22570

60

18

BK7

SF5

37.84

-26.49

-73.79

4.1

1.5

57.3

HGQ22573

80

18

BK7

SF5

49.55

-36.81

-165.58

3.4

1.5

77.41

HGQ22578

60

25.4

BK7

SK5

37.33

-27.16

-75.86

7.0

2.0

55.56

HGQ22580

120

25.4

BK7

SF5

73.28

-54.33

-159.96

4.2

2.0

117.1

HGQ22590

-25

12.7

BK7

F2

-15.6

13.09

44.16

3.0

2.7

27.5

HGQ22599

-50

25.4

BK7

F2

-31.19

24.89

85.31

3.0

4.2

53.3
